Ubiquiti UDW is a Wall-mountable UniFi Gateway which features 17x Gigabit Ethernet ports with 12x PoE Ports, 1x 2.5Gbps Ethernet Port, 2xSFP+ 10Gbps Ports as well as a built-in WiFi 6 access point and network video recorder.
The WiFi 6 delivers an aggregate data rate of up to 2.7Gbps over its 5GHz (4x4 MU-MIMO) and 2.4GHz (2x2 MIMO) bands.
It also features a 4.7" touchscreen for management, 128GB SSD & pre-installed 512GB microSD card and can be configured and managed with the UniFi Network Application or mobile app.

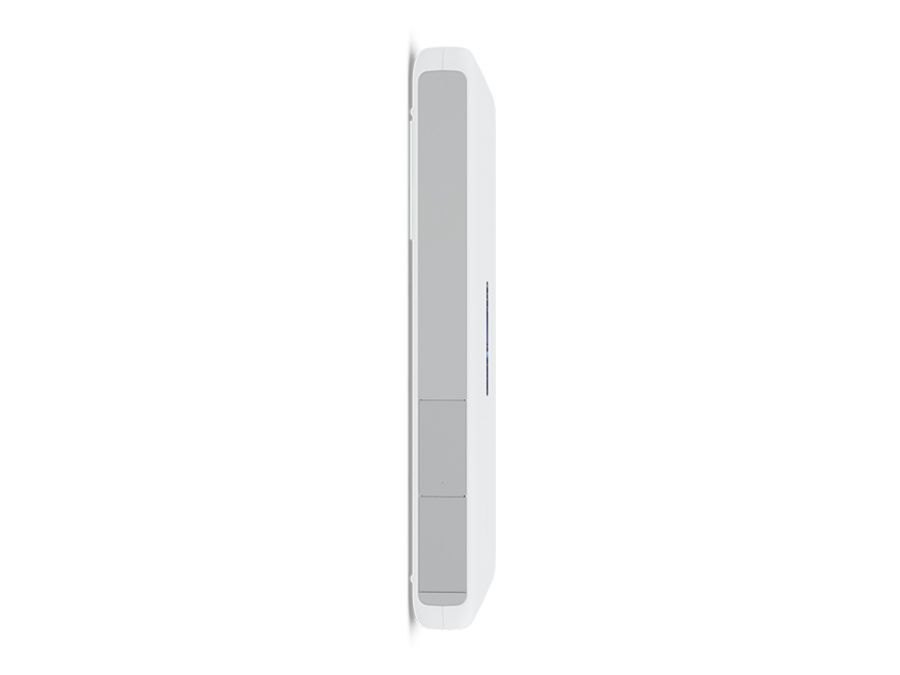

Ubiquiti UniFi Dream Wall
Antenna Gain: 2.4GHz: 5.9dBi; 5.8GHz: 6dBi
Beam-width: 360°
Data Rate: 2.4GHz: 300Mbps; 5.8GHz: 2400Mbps
Ethernet Ports: 17x 10/100/1000 ; 1x 10/100/1000/2500
Hardware Button: Reset
Max. Power Consumption: 532W
Mounting: Wall Mount
Operating System: UniFi
Operating Temperature: -10°C to 40°C
PoE Input: None
PoE Output: 12x PoE Ports (4x 802.3af ; 4x 802.3at ; 4x 802.3bt)
Power Input: 1x IEC Power Cord (Included)
Serial Interface: None
SFP Ports: 1x 10Gbps LAN; 1x 10Gbps WAN
SIM Slots: None
Supported Voltage Range: 100-240V
USB Ports: None
Other: 1x Micro SD memory card
Dimensions: 549 x 342 x 62 mm
Weight: 8.6kg
